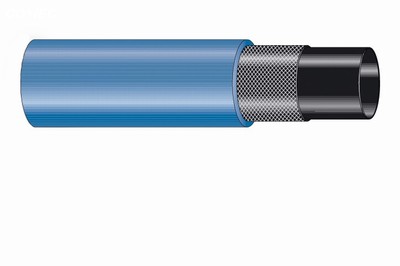

Rubber hoses - Gas and welding hoses -OXYGENE
TECHNICAL TAB

Click on image to enlarge

Application

Designed for oxygene welding delivery.
- According to EN 559

Temperature

-20C / 70C

Substrate

black EPDM / SBR rubber

Inserts

high tensile textile cords

Covering

blue ribbed SBR rubber resistant to flame, abrasion and weather agents

Surface

ribbed

Description

.

TECHNICAL FEATURES
Internal Diameter
[mm]
External Diameter
[mm]
P.E. bar P.S. bar Weight (gr/mt) Suction (mh2o) Radius of curvature
[mm]
Packaging (mt)
5
10,5
20
60
110
-
50
100
8
15
20
60
180
-
80
100
8
17
20
60
270
-
80
100
