Rubber sheets and mats - E.P.D.M. based rubber sheets -EPDM |
TECHNICAL TAB |
|

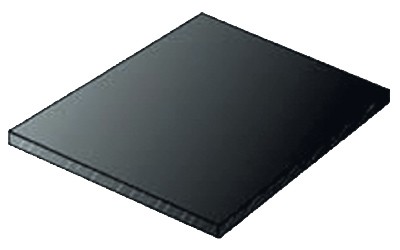

Click on image to enlarge |
| Application |
Perfect physical-mechanical characteristics. Perfect resistance to heat, to atmospheric agents, to ageing and to seawater. It is indeed used especially outdoors where a perfect resistance to ozone agents and thermal excursions is required. It is recommended in contact with medium and low concentration acids and solvents. Suitable when different but concomitant requirements are involved |
| Temperature |
-25° +120° |
| Color |
black |
| Specific Weight |
1.35 gr/cm² |
| Hardness |
65 Shore A |
| Tensile strenght |
75 Kg/cm² |
| Elongation |
200% |
Compression
(22hrs at 70° C) |
40% |
| Tear resistence |
14 kg/cm |
Abrasion resistance
(<60 0.5 kg >60 1 kg) |
250 mm³ |
|
| THERMICAL AGEING (72 hrs at 70° C) |
| Hardness |
8 Shore A |
| Tensile strenght |
- 12% |
| Elongation |
- 20% |
|
| CHEMICAL RESISTANCE |
| Ozone |
Buono |
| Diluited acids and bases |
Good |
| Concentrated acids and bases |
Good |
| Hydrocarbons |
Bad |
| Solvents |
Normal |
|
|
TECHNICAL FEATURES |
Roll Package
[mt] |
Thickness
[mm] |
1,2X10 |
1 |
1,2X10 |
1,5 |
1,2X10 |
2/2,5 |
1,2X10 |
da 3 a 10 |
1,2X5 |
da 12 a 20 |
1X1 |
da 25 a 50 |
|
|
